RT-5S

RT-5S
Caractéristiques principales:
  • Designed for operation with borehole sparker Pulse
  • Slip ring is developed for voltages up to 6 kV
  • Titanium frame and aluminium alloy drum
  • Ergonomic folding rotary handle
Prix : sur demande
i
– +
Ce produit a été ajouté avec succès à votre panier
ajouter au panier
Crédit-bail
Location
TRADE-IN

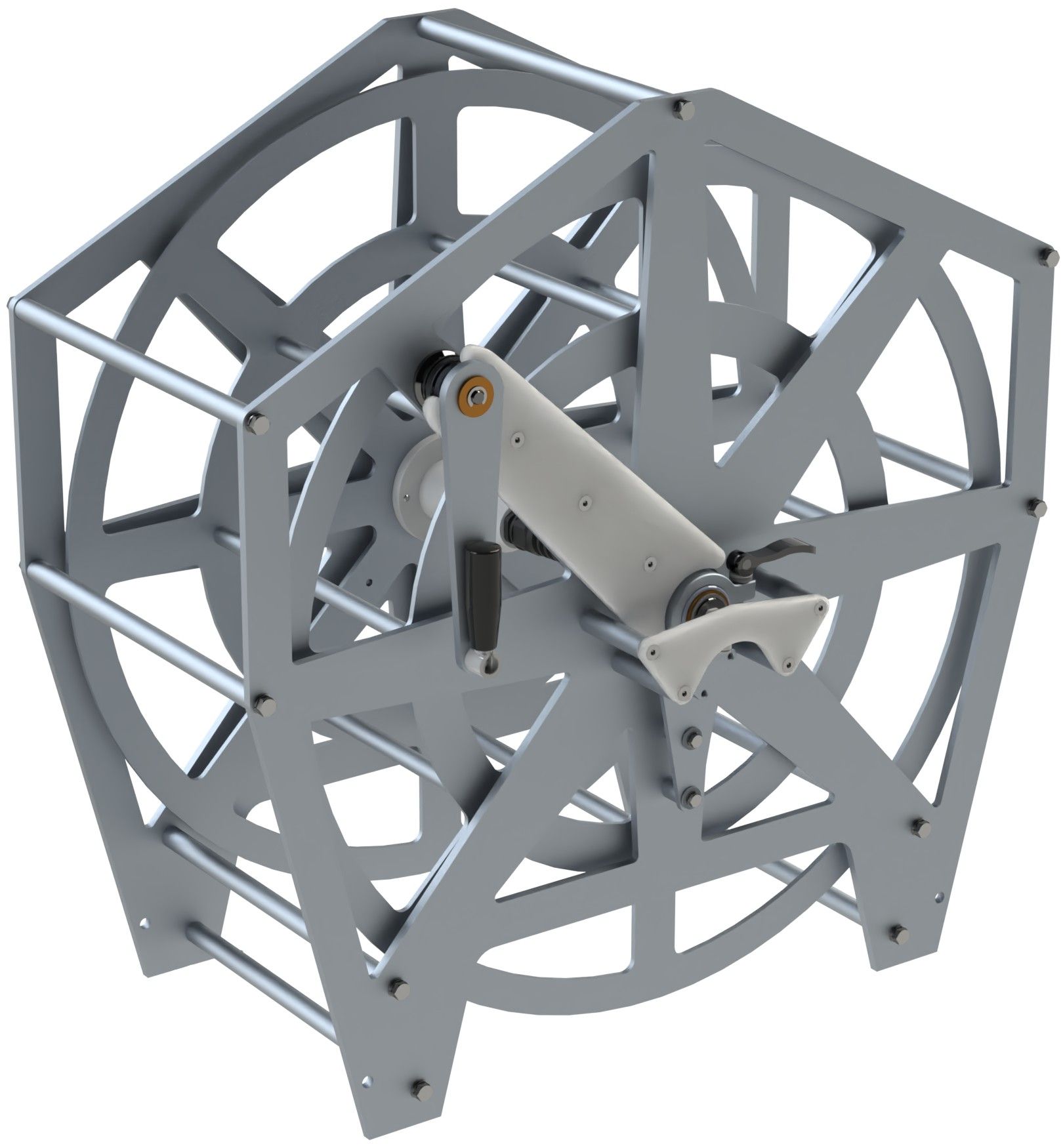

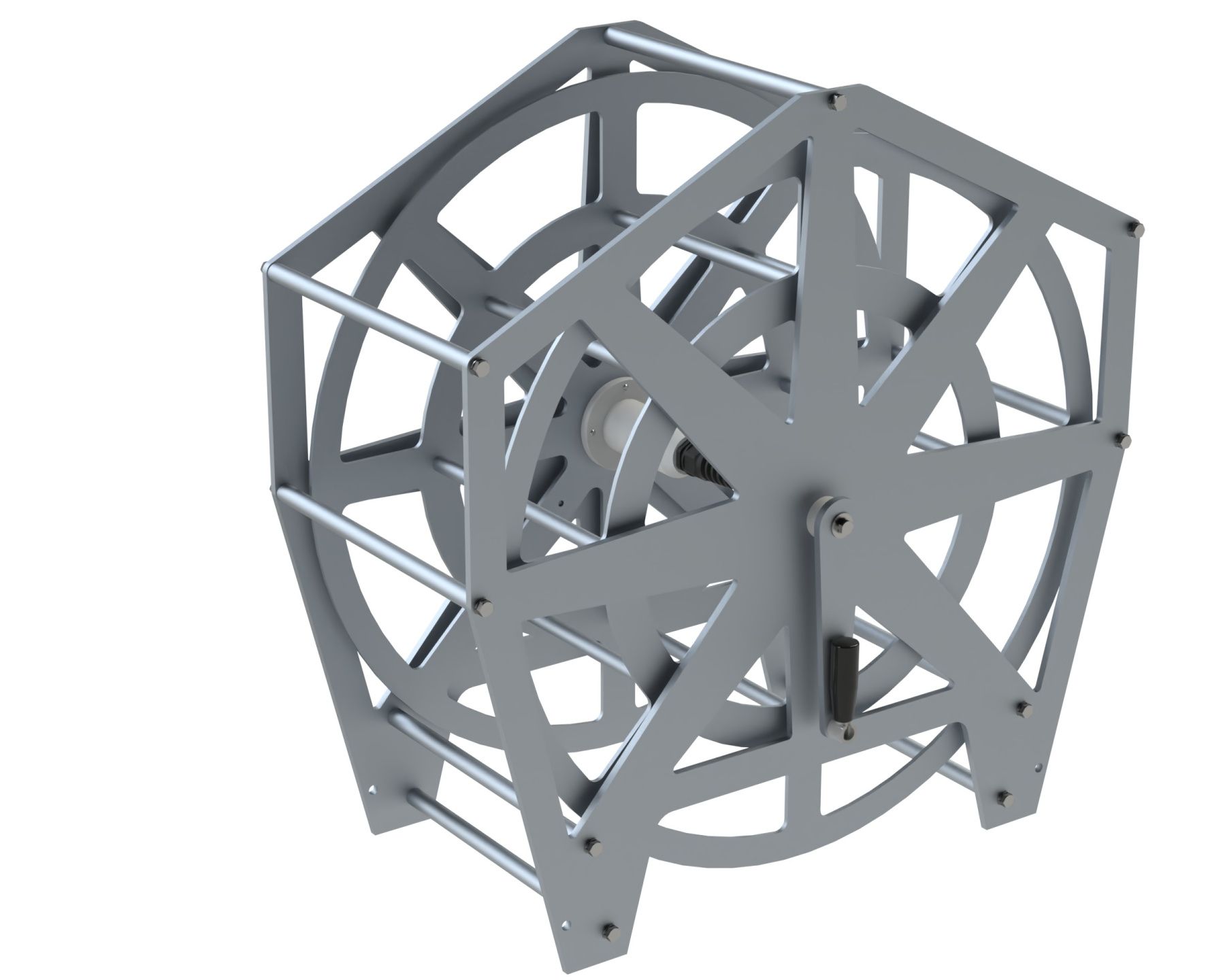

RT-5S reel is designed for the operation with borehole sparker Pulse. It is equipped with specially developed high-voltage slip ring that makes possible the high-voltage energy source while winding and unwinding the cable. Frames are made of lightweight and durable titanium alloy, the drum is made of aluminum alloy. The reel is equipped with ergonomic folding rotary handle. The reel frame has both special holder of the Pulse sparker and a drum lock.

Drum aluminum alloy
Frame titanium alloy
Winding type manual
Plug Pulse
Folding handle yes
Weight 6.0 - 7.0 kg (depends on cable parameters)
Dimensions 35×44×27…37 cm (depends on cable parameters)
Diameter of drum barrel   19 cm
