RT-5S

Main features:
  • Designed for operation with borehole sparker Pulse
  • Slip ring is developed for voltages up to 6 kV
  • Titanium frame and aluminium alloy drum
  • Ergonomic folding rotary handle
Price : on request
+
The product was successfully added to basket

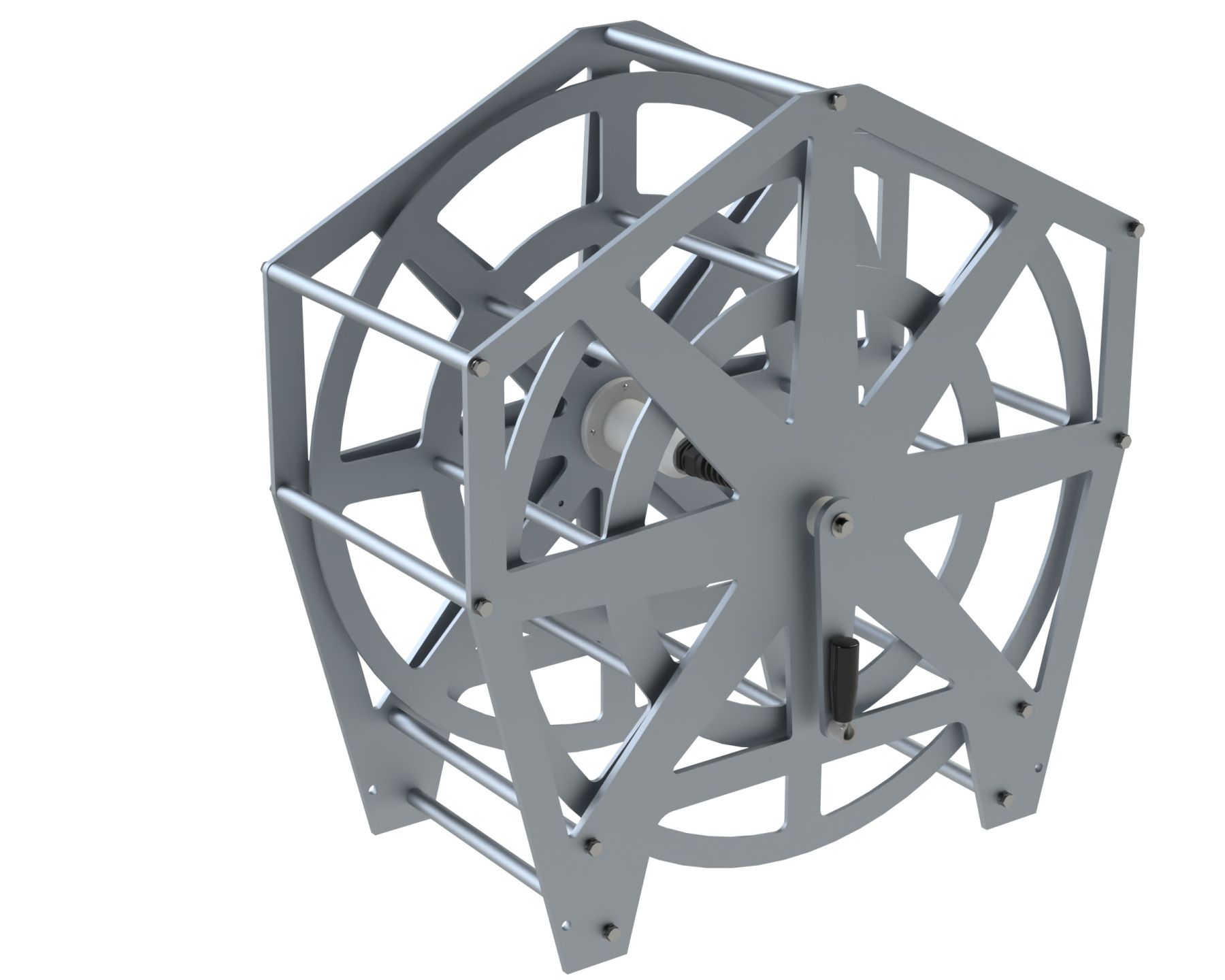

RT-5S reel is designed for the operation with borehole sparker Pulse. It is equipped with specially developed high-voltage slip ring that makes possible the high-voltage energy source while winding and unwinding the cable. Frames are made of lightweight and durable titanium alloy, the drum is made of aluminum alloy. The reel is equipped with ergonomic folding rotary handle. The reel frame has both special holder of the Pulse sparker and a drum lock.

Model

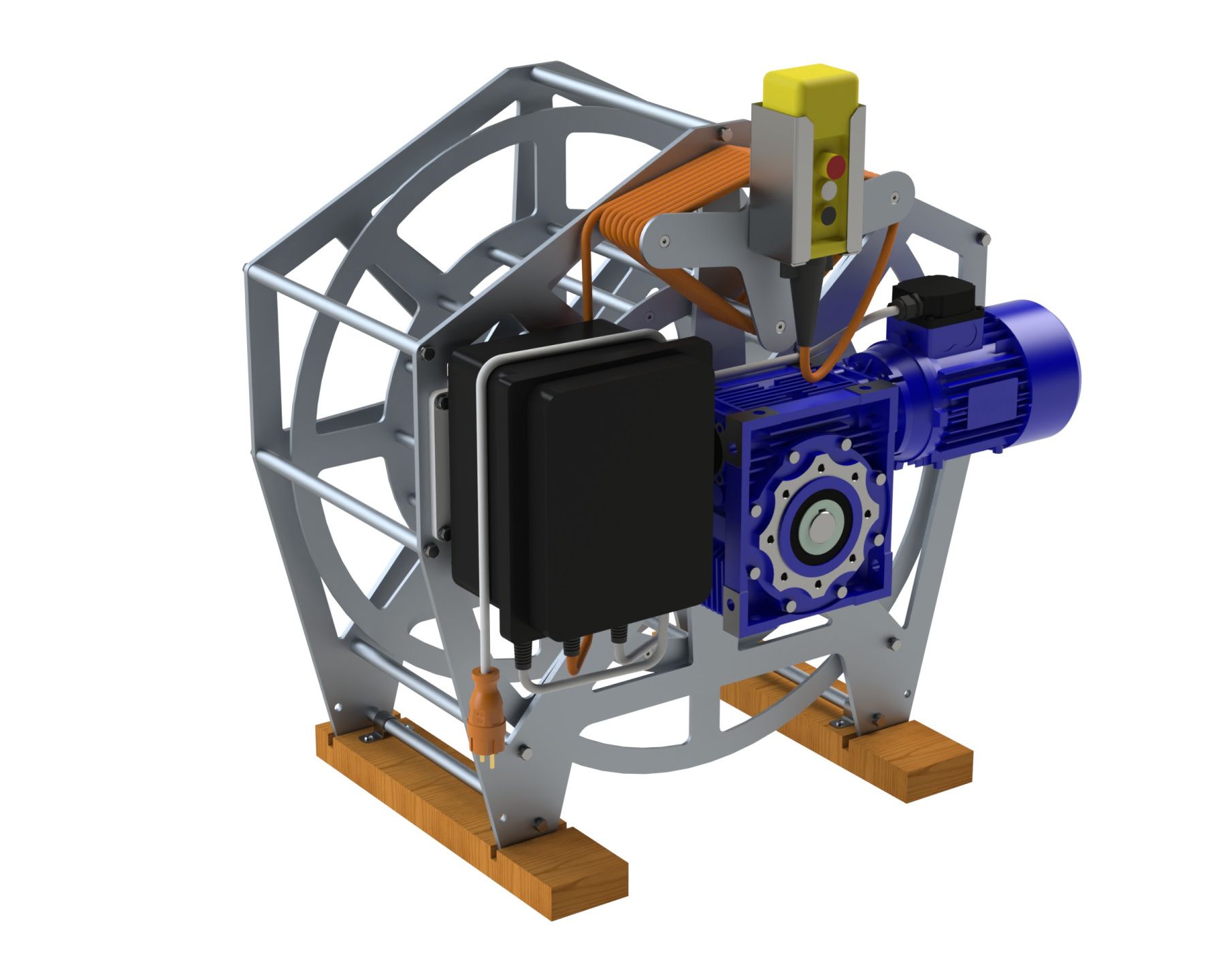

Motorized winch

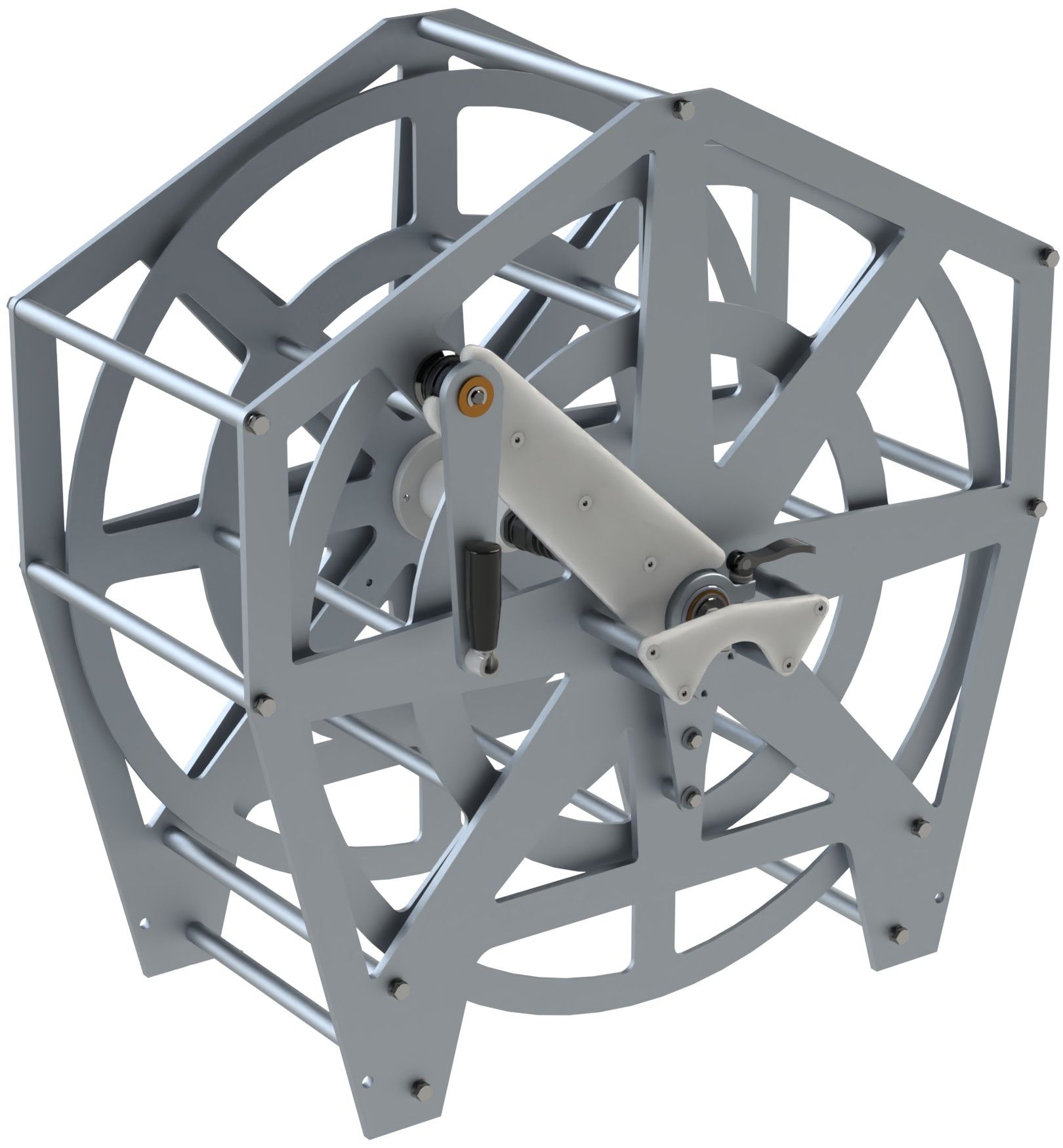

Hand winch

Reel

External dimensions range for 300 mm wide drum option (depends on options)     760×556×775 - 760×624×856 mm      760×420×775 - 760×504×775 mm      760×403×775 - 760×471×775 mm

Initial winding diameter

436 mm

Drum outer diameter

700 mm

Drum width

300 mm (can be increased on request)

Drum volume

  71 liters (can be increased on request)

Weight without cable

55-60 kg

24 kg

22 kg

Drum drive

geared motor

manual via gearbox

manual

Load capacity

normally 100 kg, 120 kg peak force

-

-

Motor power

0.75 kW / 1 hp

-

-

Power supply

220VAC 50/60Hz

-

-

Connector type

high-voltage, low-current multipin, pneumatic fitting

Options

tripod, remote holder
